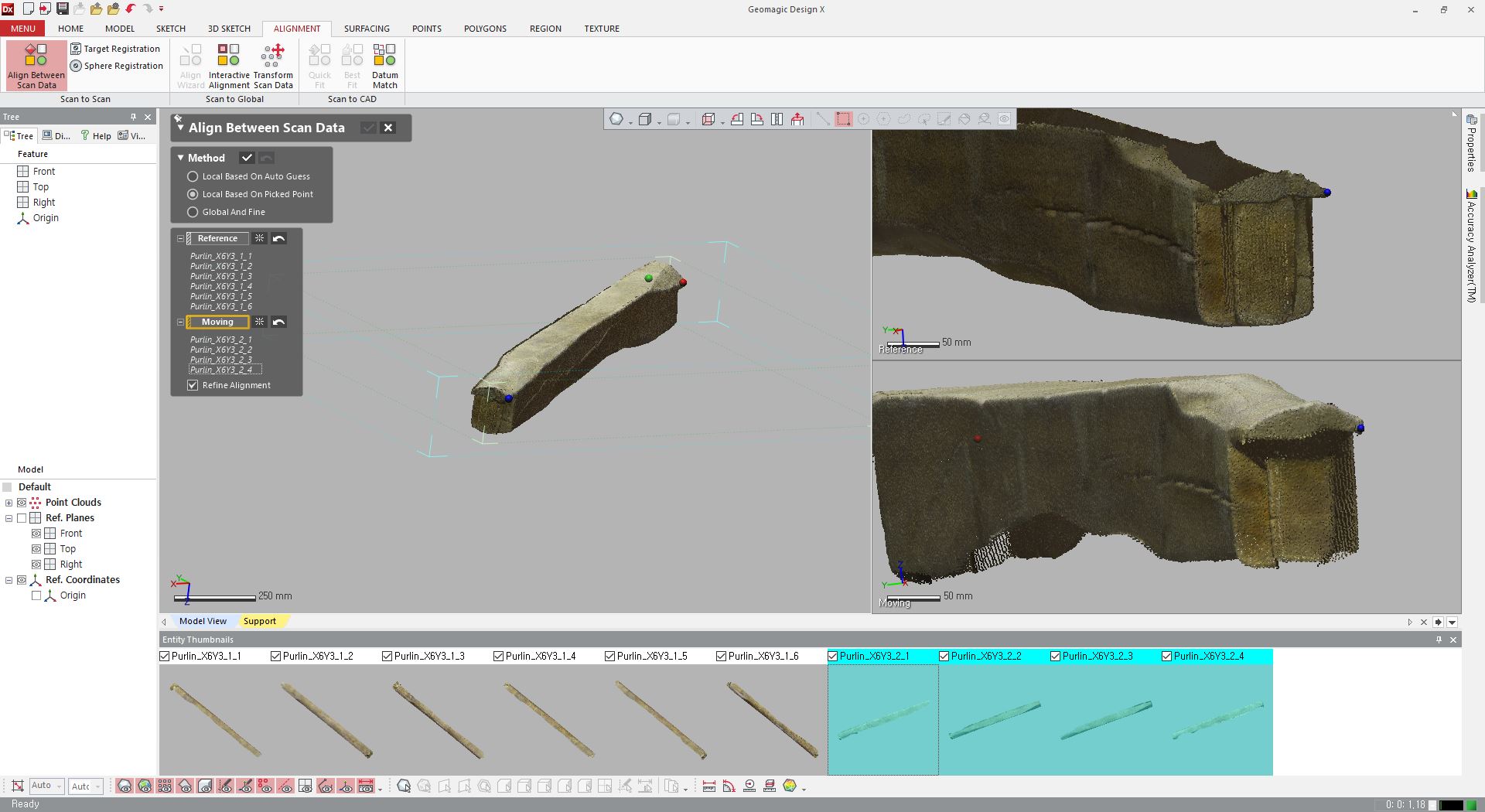

상단 메뉴바 > ALGNMENT > Align Between Scan Data 클릭
Method > Local Based On Picked Point 선택
Reference 클릭 > 하단의 Entity Thumbnails 에서 합체할 스캔데이터 부분을 모두 선택
Moving 클릭 > 하단의 Entity Thumbnails 에서 합체할 나머지 스캔데이터 선택
Reference 창과 Moving 창에 수동으로 같은 위치에 포인트를 찍습니다.
공통된 부분의 3점 이상 쌍을 만들어 주어 대략적으로 정렬을 합니다.
포인트를 찍은 후에는 이동이 어렵고, 포인트의 색깔은 찍은 순서대로 나옴
뒤로 가기 단축키 ctrl + z
Apply 버튼을 누릅니다.
최적정렬
Global And Fine > Moving > 모든 스캔데이터 선택 > Apply 버튼 > OK 버튼 (완료)
